Plastic Fittings

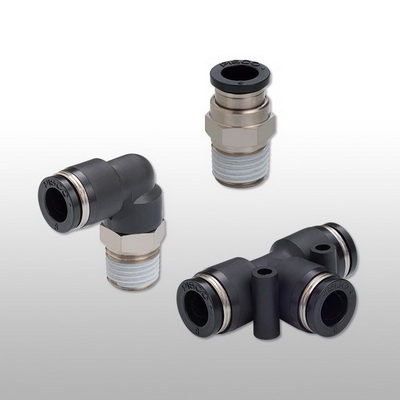

The Tube Fitting comes in a wide variety of models to meet all your needs in pneumatic piping.

Type description : Tube fitting basic types (Standard)

Tube size O.DxI.D. (mm) : 4 – 16

Thread size : M5×0.8, M6×1, R1/8″ – R1/2″, Rc1/8″ – Rc1/2″

Fluid medium : Air, Water

Max Pressure/vacuum (bar) : 10

Operating temp. : 0 ~ 60 ºC

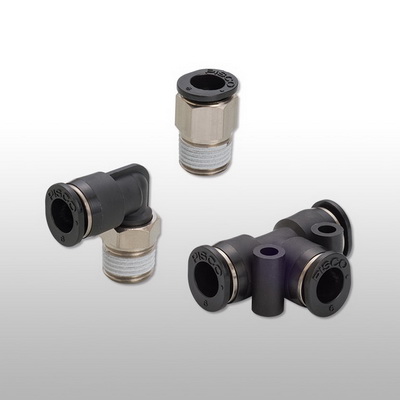

Mini-type fitting is 40% smaller than the standard type fitting.

Type description : Basic types (Mini)

Tube size O.DxI.D. (mm) : 1.8 – 6

Thread size : M3x0.5, M5x0.8, M6x1, R1/8″- R3/8″

Fluid medium : Air

Max Pressure/vacuum (bar) : 10

Operating temp. : 0 ~ 60 ºC
